Features

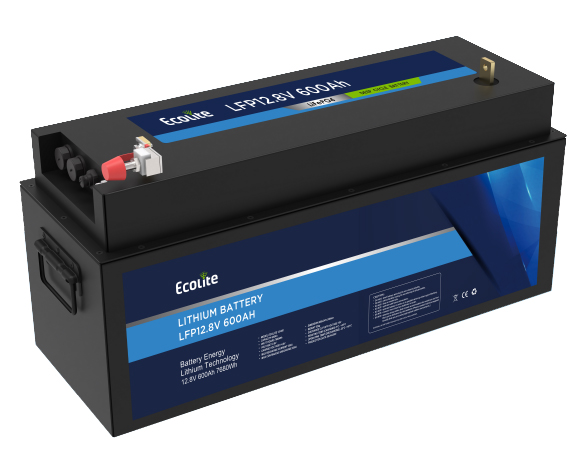

Lithium lron Phosphate (LiFePO4). The Safest Lithium Technology.
Integrated Battery Management System(BMS)Maximum support 4 in series or 4 in parallel.
Performance
Long Cycle Life >4000cycles@80%DODHigh Density,High Discharge Current,High Tempera-ture Range.Low Weight,Free MaintenanceFast Charging.Environment Friendly.
Electrical Parameters | |
Nominal Voltage | 12.8V |
Rated Capacity | 600Ah |
Energy | 7680Wh |
Resistance | ≤50mΩ |
Efficiency | ≥0.98 |
Cycle Life | >4000cycles@0.5C,80% DOD |
Self Discharge | <5% per Month |
Cell in Series/Parallel | 4S/2P |
Mechanical Parameters | |
Dimension(LxWxH) | 668x241x338mm |
Dimension(LxWxH) | 26.30x 9.49x 13.31 |
Weight | 52Kg |
Terminal Type | M8 |
Battery Housing | SPCC |
Housing Protection | IP65 |
Cell Type-Chemistry | LiFePO4 Cell |
Communication | CAN/Bluetooth |
Discharge Parameters | |
Continuous Discharge Current | 300A |
Pulse Discharge Current | 500A (<10S) |
Recommended Volt. Disconnect | 10V |
BMS Discharge Cut-off Voltage | 10V |
Reconnect Voltage | 10.8V |
Short Circuit Protection | 300-800us |
Charge Parameters | |
Charge Method | CC-CV |
Charge Voltage | 14.2~14.6V |
Recommended Float Voltage | 13.3~13.4V@100% |
Recommended Charge Current | / |
Maximum Charge Current | 300A |
BMS Charge Cut-off Voltage | 14.8V |
Temperature Parameters | |
Discharge Temperature | -20℃ to 60℃ |
Charge Temperature | 0℃ to 55℃ |
Storage Temperature | -20℃ to 60℃ |
BMS High Temperature Cut-off | 65℃ |
Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: one year
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
