12.8v 150Ah lithium battery for camping RV usage
Slimline Series
Slimline is a lithium battery product developed by our company for outdoor activities and RV backup energy.
It is light and portable, has high energy density, and is equipped with multiple interfaces such as USB and Ciga.
It can be charged by room electric charging and solar charging.
It can meet the energy supply needs of general family travel and outdoor activities.
Performance
SLIMLINE POWER PLUS sampling lithium iron phosphate battery cell,with built-in intelligent BMS,
has characteristics such as long service life, lightweight, high discharge current, wide temperaturerange,
fast charging,maintenance free, safety andenvironmental protection.At the same time,
it hasmultiple charging and discharging interfaces,supporting three charging methods: car generator,photovoltaic panel,
and city power.It is a multi-functional power supply, making it easierto use and more convenient.
| Electrical Parameters | |
| Nominal Voltage | 12.8V |
| Rated Capacity | 150Ah |
| Energy | 1920Wh |
| Resistance | ≤30mΩ |
| Efficiency | ≥0.98 |
| Cycle Life(25'C,0.5C/0.5C,100% DOD) | >4000cyces ,Remaining capacity>80% |
| Self Discharge | <5% per Month |
| Cell in Series/Parallel | 4S/1P |
| Mechanical Parameters | |

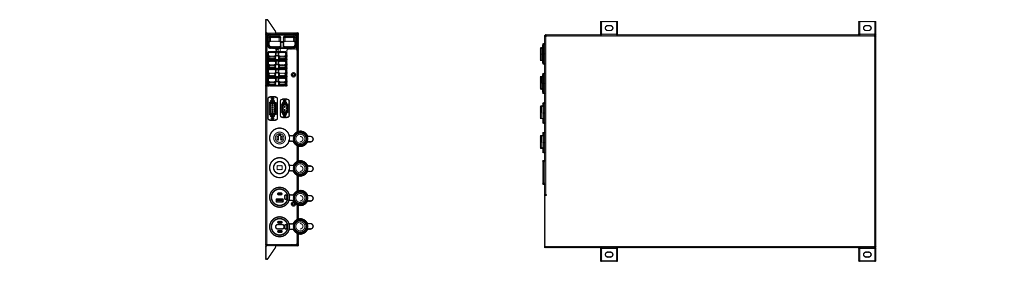

| Dimension(LxWxH) | 615x445x60mm |
| Dimension((LxWxH) | 24.12x 17.52x 2.36" |
| Weight | 25Kg |
| Terminal Type | Reference connector parameters |
| Battery Housing | SPCC |
| Housing Protection | IP30 |
| Cell Type-Chemistry | LiFePO4 Cell |
| Communication | Bluetooth |
| Charge Parameters | |
| Charge Method | CC-CV |
| Charge Voltage | 14.2~14.6V |
| Recommended Float Voltage | 13.3~13.4V@100% |
| Recommended Charge Current | / |
| Maximum Charge Current | 150A |
| BMS Charge Cut-off Voltage | 14.8V |
| Discharge Parameters | |
| Continuous Discharge Current | 150A |
| Pulse Discharge Current | 300A(<1S) |
| Recommended Volt. Disconnect | 10V |
| BMS Discharge Cut-off Voltage | 10V |
| Reconnect Voltage | 10.8V |
| Short Circuit Protection | 300-800us |
| Connector | |
| Anderson 50A( Blue) | Alternator, DC11.5~16V,Max30A |
| Anderson 50A( Red) | Solar，DC14V-DC50V，Max30A |
| Anderson 175A( Grey) | DC10~DC14.6V,Max150A |
| Anderson 50A*2( Grey) | DC10-DC14.6V,Max50A |
| Ciga Socket | DC10-DC14.6V,Max10A |
| Engle Socket | DC10-DC14.6V,Max10A |
| USB-A+USB-C | 18V+65W |
| USB-Cx2 | 45W |
| 2P Wiring Terminal | lgnition |
| 4P Wiring Terminal | Display screen |
| Temperature Parameters | |
| Discharge Temperature | -20℃ to 60℃ |
| Charge Temperature | 0℃to 55℃ |
| Storage Temperature | -20℃ to 35℃ |
| BMS High Temperature Cut-off | 65℃ |
We provide full solution for your battery inquiry.One-stop service from battery design to delivery.
APPLICATION
Our lithium batteries are widely used in home, industrial and commercial energy storage, solar systems, RV(recreational vehicle), forklifts, golf carts, AGVs and small appliances.
MAINLY EXPORTED
Australia, Spain, South Africa, Japan, Germany, Singapore and other countries,.Product quality and service have been widely recognized by customers.
