FEATURES
Lithium lron Phosphate (LiFePO4).Integrated Battery Management System(BMS).Supports USB-A and USB-C discharge
Supports USB-C charging. Supports DC charging
PERFORMANCE
Long Cycle Life >2000 cycles,Remaining capacity >80%@25℃,0.5C/0.5,100%DOD.
High Density, High Discharge Current, High Temperature Range.
Low Weight, Free Maintenance.Fast Charging.Environment Friendly.

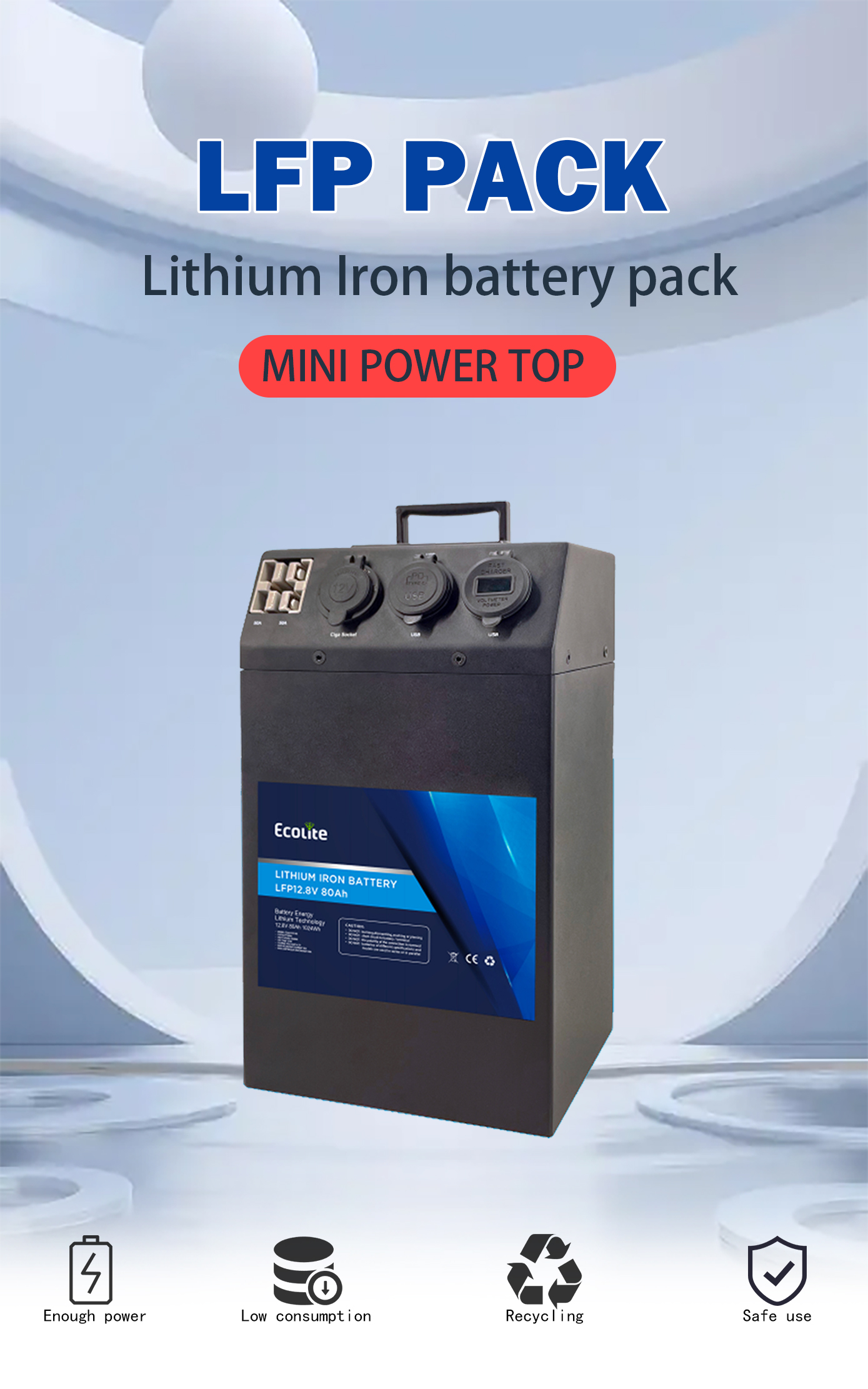

mini battery cover 12.8V80Ah
BATTERY DATA SHEET
Electrical Parameters					Mechanical Parameters
Nominal Voltage		12.8V			Dimension(L×W×H)		181x136x320mm
Rated Capacity		80Ah					7.12x 5.35x 12.60"
Energy		1024Wh			Weight		11.5kg
Resistance		≤20mΩ			Terminal Type		50A Anderson
Efficiency		≥0.98			Battery Housing		SPCC
Cycle Life		>3000cycles @1C,80% DOD			Housing Protection		IP32
Self Discharge		＜ 5% per Month			Cell Type-Chemistry		LiFePO4 Cell
Cell in Series/Parallel		4S/1P			Communication		Bluetooth
Discharge Parameters					Charge Parameters
Continuous Discharge Current		80A			Charge Method		CC-CV
Pulse Discharge Current		120A (<10S)			Charge Voltage		14.2~14.6V
Recommended Volt. Disconnect		10V			Recommended Float Voltage		13.3~13.4V@100%
BMS Discharge Cut-off Voltage		10V			Recommended Charge Current		40A
Reconnect Voltage		10.8V			Maximum Charge Current		80A
Short Circuit Protection		300-800us			BMS Charge Cut-off Voltage		14.8V
Temperature Parameters
Discharge Temperature		-20 ℃ to 60 ℃
Charge Temperature		0 ℃to 55 ℃℃
Storage Temperature		-20 ℃ to 60 ℃
BMS High Temperature Cut-off		65℃

Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: two year
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many packs you can produce per month?
A: 10000 pcs
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
