LFP36-100 High Density Lithium Iron Battery 38.4V 100Ah For Caravan For Energy storage System
See more pictures
Product Detail
Feedback Now

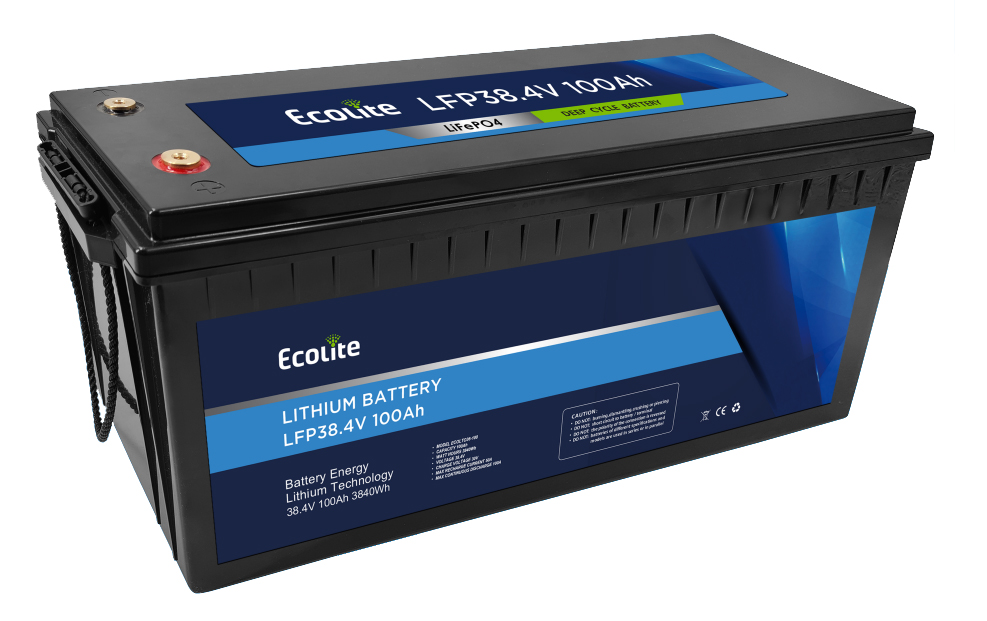

LFP36-100 High Density Lithium Iron Battery 38.4V 100Ah

LFP36-100 can be used as an energy source to power RV equipment. It is an excellent choice of energy storage battery for your travel. We can customize it according to the size required by the customer to meet the customer's usage needs.

Features:

Lithium lron Phosphate (LiFePO4).
The SafestLithium Technology.
Integrated Battery Management System(BMS)Maximum support 4 in parallel.

Performance:

Long Cycle Life>3000cycles@ 80%DOD.
High Density,High Discharge Current,High Tempera-ture Range.
Low Weight,Maintenance Free.
Fast Charging
Environmentally Friendly.

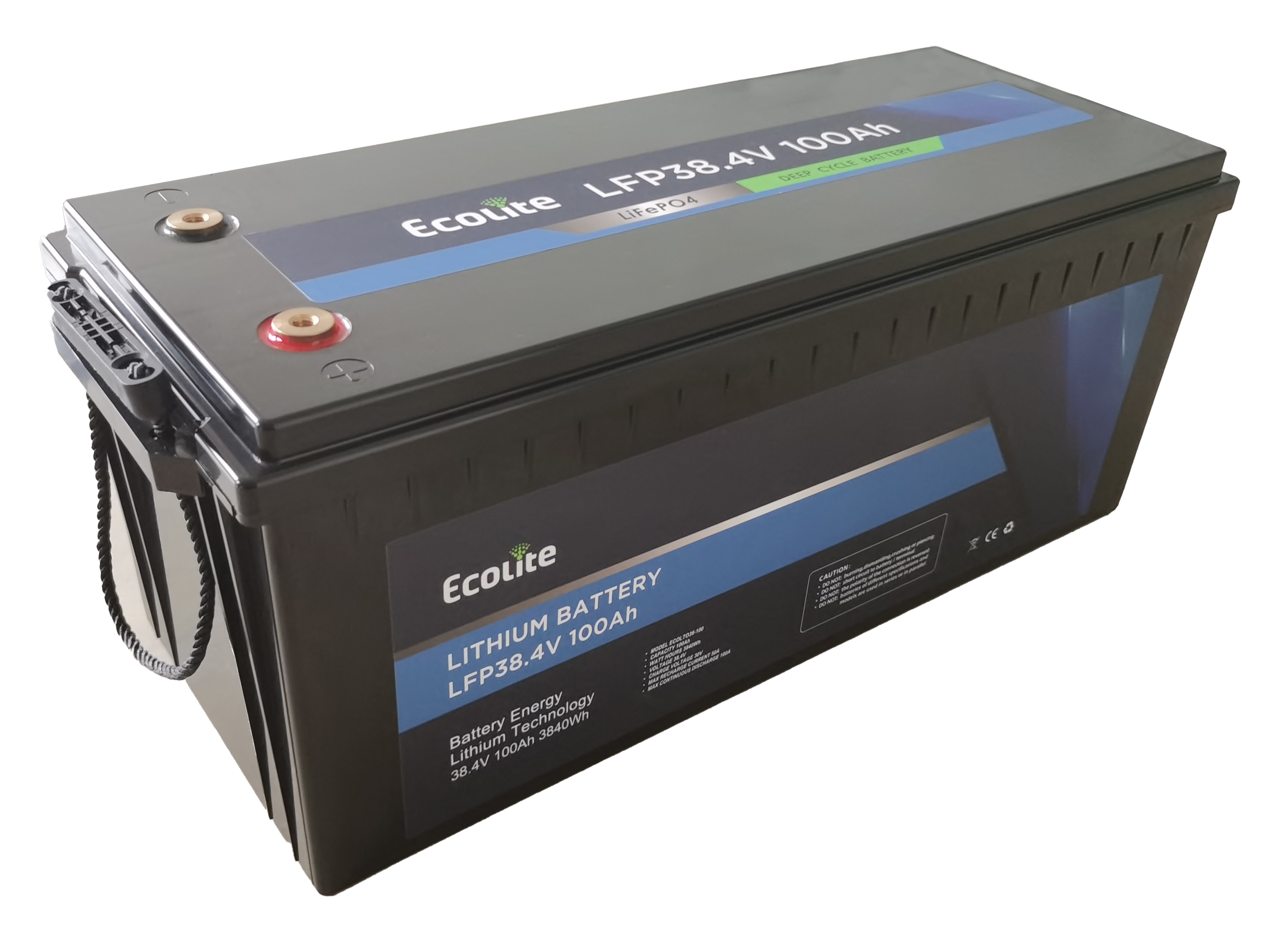

Peoduct picture



Electrical Parameters
Nominal Voltage38.4V
Rated Capacity100Ah
Energy3840Wh
Resistance≤60mΩ
Efficiency≥0.98
Cycle Life>3000cycles @1C,80% DOD
Self Discharge<5% per Month
Cell in Series/Parallel12S/1P

Mechanical Parameters
Dimension(W×D×H)532x207x215mm
Dimension(W×D×H)20.94×8.15×8.46''
Weight27kg
Terminal TypeM8
Battery HousingABS
Housing ProtectionIP67
Cell Type-ChemistryLiFePO4 Cell
CommunicationBluetooth

Discharge Parameters
Continuous Discharge Current100A
Pulse Discharge Current200A(<1S)
Recommended Volt.Disconnect30V
BMS Discharge Cut-off Voltage30V
Reconnect Voltage32.4V
Short Circuit Protection300-800us

Charge Parameters
Charge MethodCC-CV
Charge Voltage42.6~43.8V
Recommended Float Voltage39.9~40.2V@100%
Recommended Charge Current50A
Maximum Charge Current100A
BMS Charge Cut-off Voltage44.4V

Temperature Parameters
Discharge Temperature-20℃ to 60°C
Charge Temperature0℃ to 55°C
Storage Temperature-20℃ to 60°C
BMS High Temperature Cut-off65℃


Q: Do you provide free sample?
A: Yes, a few pcs free sample can be provided, but freight will be charged
Q: what is the warranty?
A: Around two years.
Q: What is your payment term?
A: T/T,L/C
Q: do you accepte OEM order?
A: Yes, you can print yourself logo, also we can provide the design of outlook for your special battery pack
Q: How many cells you can produce per month?
A: 1.8million
Q: What is the mode of transport?
A: usually by sea
Q: Which certificates do you have
A: We have un38.3,MSDS...etc.
