| ECOLTO-T4820 E-Bike |
| Lithium titanate battery |

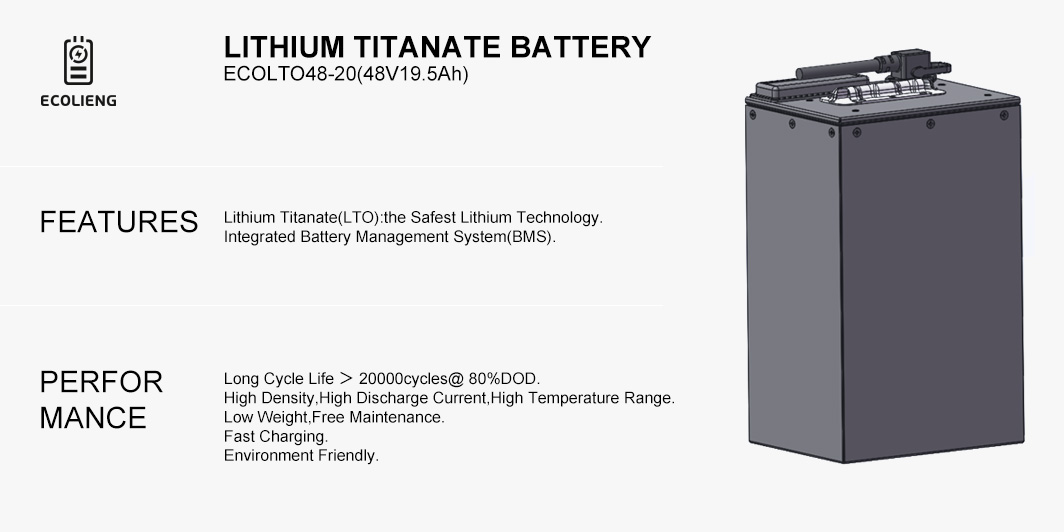

| 1）Quick Details |

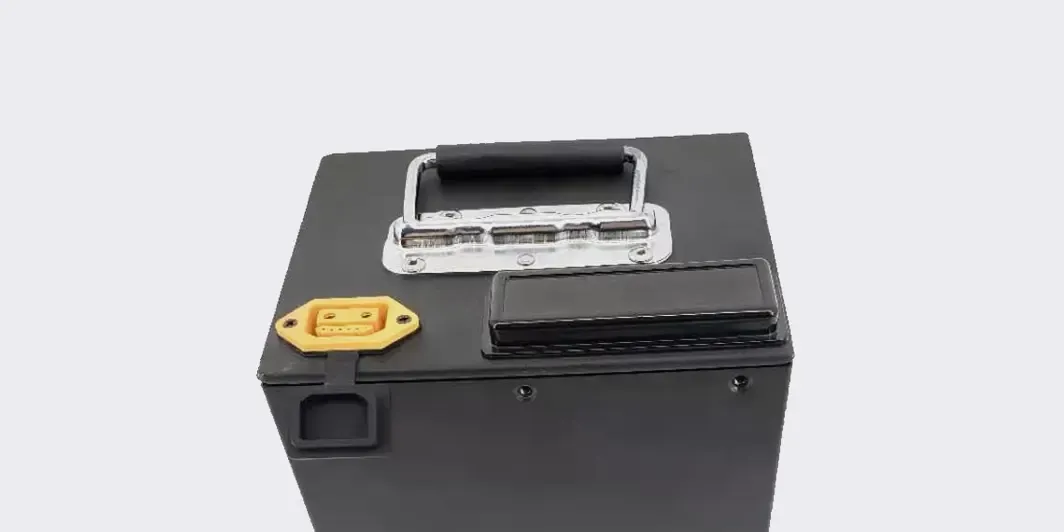

| LTO 48V20Ah E-Bike Battery |
| 2）Features |
| We adopted LTO 18650-1500 steel shell and 18650-1300 pin battery. The lithium titanate battery has the ability to charge and discharge at minus 50℃ to above 60℃, which means that no matter in the north or south, in winter or in summer, the vehicle will not be affected by the battery "shock" and work. Lithium titanate battery can be charged and discharged quickly, which not only greatly reduces the charging time, but also has little effect on the cycle life and strong thermal stability. There is no need to replace the battery frequently, the cost of operation and maintenance is lower. |
| 3）Application |
| This is a project about E- bikes.Supply to the northwest of China, where the weather is very cold and the temperature is very low.LFP can’t satisfy the condition. |
Product Parameter
Start a Free Product Chat
| Electrical Parameters | Mechanical Parameters | ||
| Nominal Voltage | 48V | Dimension(L×W×H) | 185x145x310mm |
| Rated Capacity | 19.5Ah | 7.28x5.71x12.20" | |
| Energy | 936Wh | Weight | 15kg |
| Resistance | ≤ 65mΩ | Terminal Type | 2+6plug |
| Efficiency | 0.99 | Battery Housing | cold rolled steel sheet |
| Cycle Life | >10000cycles @1C,80% DOD | Housing Protection | IP65 |
| Self Discharge | 2% per Month | Cell Type-Chemistry | LTO Cell |
| Max. Modules in Series/Parallel | 13P/20S | SOC Display(Optional) | 4G, RS485 |
| Discharge Parameters | Charge Parameters | ||
| Continuous Discharge Current | 20A | Charge Method | CC-CV |
| Pulse Discharge Current | 60A （<10S） | Charge Voltage | 55V-57V |
| Recommended Volt. Disconnect | 30V | Recommended Float Voltage | 55V |
| BMS Discharge Cut-off Voltage | 30V | Recommended Charge Current | 10A |
| Reconnect Voltage | 40V | Maximum Charge Current | 20A |
| Short Circuit Protection | 200-500us | BMS Charge Cut-off Voltage | 57V |
| Temperature Parameters | |||
| Discharge Temperature | -40 to 60 ℃ | ||
| Charge Temperature | -40 to 60 ℃ | ||
| Storage Temperature | 10 to 35℃ | ||
| BMS High Temperature Cut-off | 65 ℃ | ||
BATTERY DATA SHEET
