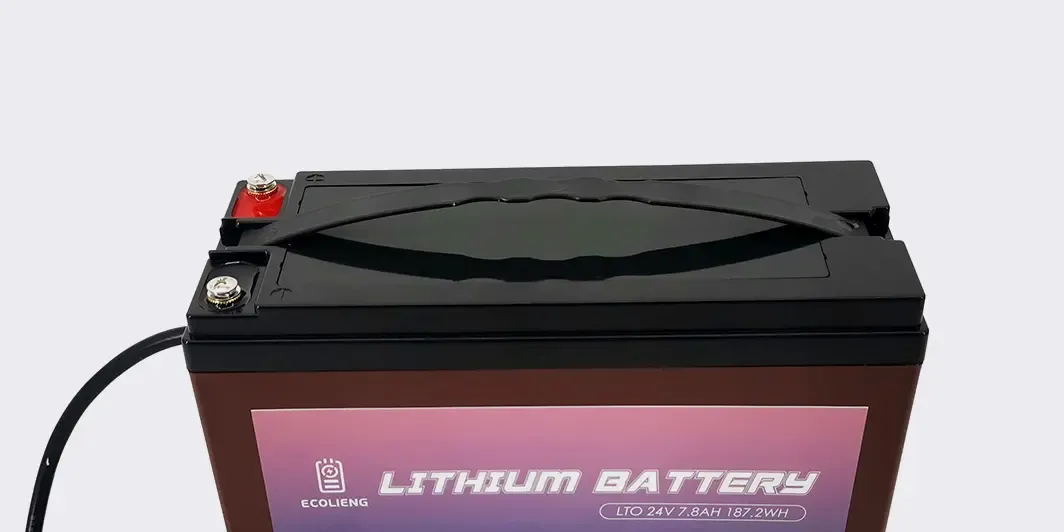

| ECOLTO-T2407 |
| Lithium titanate battery |
| 1）Quick Details |
| Lithium Titanate(LTO)24V7.8Ah |
| 2）Features |
| The cell adopts lithium titanate technology.A wide range of temperature, rapid charging, stability and high output,free Maintenance. Long Cycle Life >20000cycles @1C,80% DOD. Divided into plastic case version and simple version. Plastic case (ABS)is suitable for mobile power supply,Terminal Type M5.Simple version (PVC)is more suitable to put into the battery compartment of the device,It's more compact in design. |
| 3）Application |
| Solar tracker, 24V power tools, electric equipment |
Product Parameter
Start a Free Product Chat
| Electrical Parameters | Mechanical Parameters | ||
| Nominal Voltage | 24V | Dimension(L×W×H) | 223x95x175mm |
| Rated Capacity | 7.8Ah | 8.78x3.74x6.89" | |
| Energy | 187.2Wh | Weight | 3.5kg |
| Resistance | ≤ 20mΩ | Terminal Type | M5 |
| Efficiency | 0.99 | Battery Housing | ABS |
| Cycle Life | >20000cycles @1C,80% DOD | Housing Protection | IP54 |
| Self Discharge | 2% per Month | Cell Type-Chemistry | LTO Cell |
| Max. Modules in Series/Parallel | 6P/10S | SOC Display(Optional) | RS485,Brown-485A，Blue-485B |
| Discharge Parameters | Charge Parameters | ||
| Continuous Discharge Current | 39A | Charge Method | CC-CV |
| Pulse Discharge Current | 280A （<0.01S） | Charge Voltage | 24V-28.5V |
| Recommended Volt. Disconnect | 15V | Recommended Float Voltage | 28.5V |
| BMS Discharge Cut-off Voltage | 17V | Recommended Charge Current | 7.8A |
| Reconnect Voltage | 18V | Maximum Charge Current | 23.4A |
| Short Circuit Protection | 500-1000us | BMS Charge Cut-off Voltage | 28.5V |
| Temperature Parameters | |||
| Discharge Temperature | -40 to 60 ℃ | ||
| Charge Temperature | -40 to 60 ℃ | ||
| Storage Temperature | 0 to 45℃ | ||
| BMS High Temperature Cut-off | 70 ℃ | ||
BATTERY DATA SHEET
