ECOLTO-24100 |
Lithium Iron Phosphate Battery |
1)Quick Details |

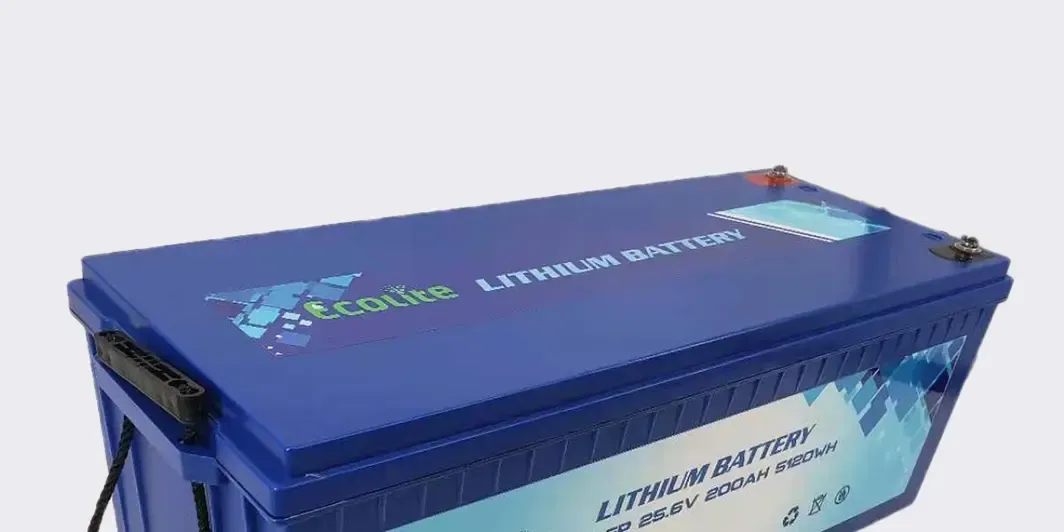

Deep cycle Lithium battery (LiFePO4) 24V200Ah |
2)Features |
Lithium-ion batteries are now a very popular type of battery.Long life Deep cycle > Capacity upgrade to store more capacity and longer use time. Variety of charging methods: solar panels, electric supply, engine charging Our products support customization, factory direct sales, brand cell, intelligent BMS, mature and reliable production process. |
3)Application |
Home energy storage, solar energy storage,RV,Marine propeller,Outdoor high power equipment,UPS |
Product Parameter
Start a Free Product Chat
Electrical Parameters | Mechanical Parameters | ||
Nominal Voltage | 25.6V | Dimension(L×W×H) | 640x245x220mm |
Rated Capacity | 200Ah | 25.19x9.64x8.66" | |
Energy | 5120Wh | Weight | 42kg |
Resistance | ≤ 65mΩ | Terminal Type | M8 |
Efficiency | 0.99 | Battery Housing | ABS |
Cycle Life | >4000cycles @1C,80% DOD | Housing Protection | IP65 |
Self Discharge | 2% per Month | Cell Type-Chemistry | LiFePO4Cell |
Max. Modules in Series/Parallel | 8S/4P | SOC Display(Optional) | / |
Discharge Parameters | Charge Parameters | ||
Continuous Discharge Current | 100A | Charge Method | CC-CV |
Pulse Discharge Current | 200A (<3S) | Charge Voltage | 28.4-29.2V |
Recommended Volt. Disconnect | 20V | Recommended Float Voltage | 27V |
BMS Discharge Cut-off Voltage | 17.6V | Recommended Charge Current | 50A |
Reconnect Voltage | 21.6V | Maximum Charge Current | 100A |
Short Circuit Protection | 300-800us | BMS Charge Cut-off Voltage | 30V |
Temperature Parameters | |||
Discharge Temperature | -20 to 60 ℃ | ||
Charge Temperature | 0 to 60 ℃ | ||
Storage Temperature | -10 to 60℃ | ||
BMS High Temperature Cut-off | 65 ℃ |
BATTERY DATA SHEET
