| ECOLTO-24100 |

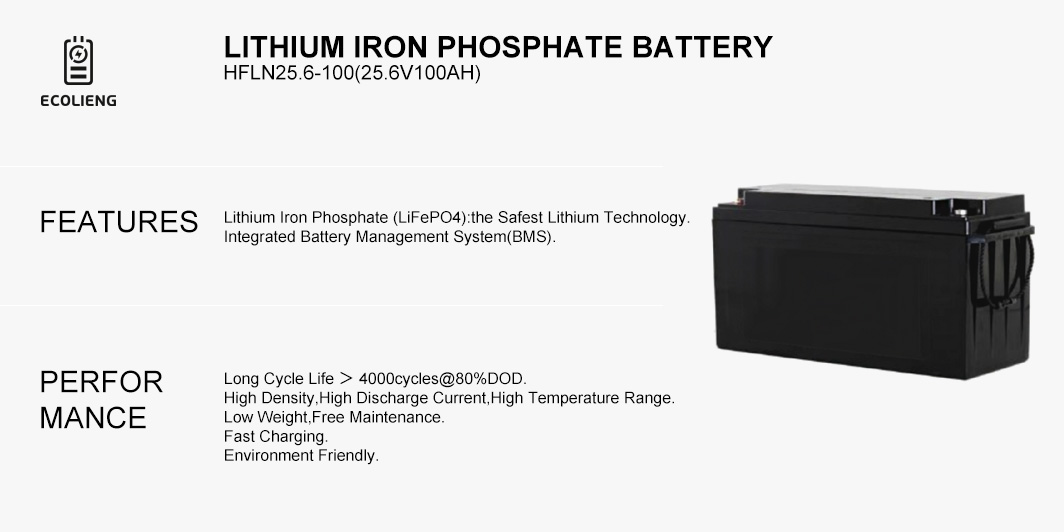

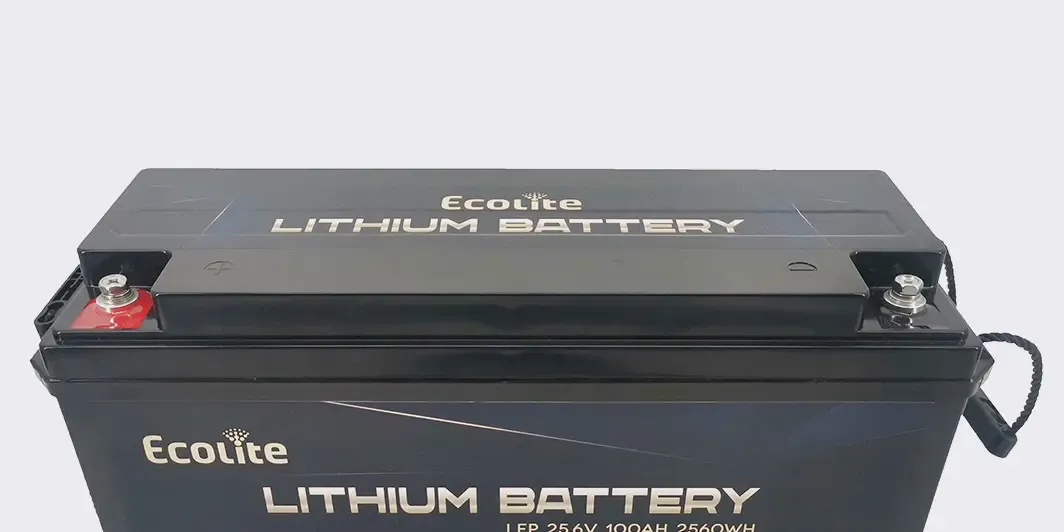

| Lithium Iron Phosphate Battery |
| 1）Quick Details |
| Lithium iron phosphate（LiFePO4) 24V100Ah battery |
| 2）Features |
| Lithium-ion batteries are now a very popular type of battery.Long life Deep cycle ＞ 4000cycles@80%DOD, its design is very small, easy to carry, also environmentally friendly. Our products support customization, factory direct sales, brand cell, intelligent BMS, mature and reliable production process. |
| 3）Application |
| Outdoor energy storage,portable energy storage, RV, marine,medical equipment, home energy storage, solar energy storage |
Product Parameter
Start a Free Product Chat
| Electrical Parameters | Mechanical Parameters | ||
| Nominal Voltage | 25.6V | Dimension(L×W×H) | 483x170x240mm |
| Rated Capacity | 100Ah | 19.0x6.7x9.4" | |
| Energy | 2560Wh | Weight | 22kg(48.5bs) |
| Resistance | ≤ 65mΩ | Terminal Type | M8 |
| Efficiency | 0.99 | Battery Housing | ABS, LG121 |
| Cycle Life | >4000cycles @1C,80% DOD | Housing Protection | IP56 |
| Self Discharge | 2% per Month | Cell Type-Chemistry | LiFePO4Cell |
| Max. Modules in Series/Parallel | 8S/2P | SOC Display(Optional) | / |
| Discharge Parameters | Charge Parameters | ||
| Continuous Discharge Current | 100A | Charge Method | CC-CV |
| Pulse Discharge Current | 200A （<3S） | Charge Voltage | 28.8-29.6V |
| Recommended Volt. Disconnect | 20V | Recommended Float Voltage | 27.6V |
| BMS Discharge Cut-off Voltage | 17.6V | Recommended Charge Current | 50A |
| Reconnect Voltage | 21.6V | Maximum Charge Current | 100A |
| Short Circuit Protection | 300-800us | BMS Charge Cut-off Voltage | 30V |
| Temperature Parameters | |||
| Discharge Temperature | -20 to 60 ℃ | ||
| Charge Temperature | 0 to 60 ℃ | ||
| Storage Temperature | -20 to 60℃ | ||
| BMS High Temperature Cut-off | 78 ℃ | ||
BATTERY DATA SHEET
